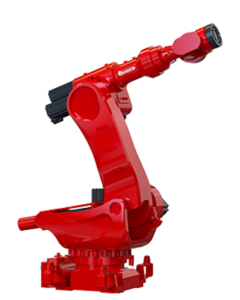

Heavy-Duty Series
RL Robotics Heavy-Duty Series is a high-payload range of 6-axis industrial robots engineered for large-scale, demanding automation. With payload capacity from 125kg to 500kg and reach spanning 2658mm to 3100mm, these robots solve the endurance problem — built for press lines, structural fabrication, and continuous multi-shift environments where the robot is a core production asset, not a supplementary one. The hollow-arm architecture protects internal cables from sparks and abrasion, while IP67-rated wrist protection and ±0.06mm repeatability deliver precision even under sustained heavy loads.
Technical Specifications
| Specification | Heavy-Duty-210/2.65 | Heavy-Duty-210/3.05-DW | Heavy-Duty-125/3.10 | Heavy-Duty-220/2.66 | Heavy-Duty-500/3.21 |
|---|---|---|---|---|---|
| Payload Capacity | 210 kg | 210 kg | 125 kg | 220 kg | 500 kg |
| Maximum Reach | 2658 mm | 3050 mm | 3100 mm | 2660 mm | 3218 mm |
| Repeatability | ±0.06 mm | ±0.06 mm | ±0.06 mm | ±0.06 mm | ±0.01 mm |
| Controlled Axes | 6 | 6 | 6 | 6 | 6 |
| Robot Structure | Hollow Arm Design | Hollow Arm Design | Hollow Arm Design | Hollow Arm Design | Hollow Arm Design |
| Protection Rating | IP67 (Wrist) | IP67 (Wrist) | IP67 (Wrist) | IP67 (Wrist) | IP67 (Wrist) |
| Mounting Options | Floor | Floor | Floor | Floor | Floor |
What Comes with Your Robot
Each RL Robotics industrial robot is supplied as a complete automation-ready package, including:
Standard Package
● Industrial Robot Arm
● Robot Controller
● Teach Pendant
● Standard cables and accessories
Optional Add-Ons
Positioner / Turntable – Provided as per application requirement.
Integration solution
(Only for Welding)
RL Robotics recommends the BINGO Power Source for robots & cobots, ensuring stable arcs, high repeatability, and reliable automated welding.
RL Robotics Controller
Intelligent Robot Control System
RL Robotics Advanced Controller delivers high-speed processing, precise motion control, and reliable communication for industrial automation. Its modular design ensures seamless integration with robots, PLCs, vision systems, and manufacturing equipment.
| Control | Up to 6-Axis Robot Control |
| Communication | EtherCAT, TCP/IP, DeviceNet |
| Design | Compact Modular Architecture |
| Storage | 4GB Memory |
| Protection | IP20–IP54 (Model Dependent) |
| Applications | Welding,Painting, Handling, Assembly & Inspection |
Teaching Pendant
| Model | STBV2A | STBT2A-H |
|---|---|---|
| Size | 348.1mm × 206.7mm × 46.5mm | 288mm × 218mm × 86mm |
| Screen |
7-inch touchscreen, resolution 800×480, with touch pen and function keys. |
8-inch touchscreen, resolution 1024×768, function keys. |
| IP Class | IP65 | IP54 |
| Cable Length | Cable length options: 9m, 15m, or 25m available. | |
Related Industrial Robots
Compact Series
Compact Series Industrial Robots deliver precise 6-axis automation with a space-saving design, making them ideal for welding, machine tending, material handling, and assembly in compact production environments.
Duco Collabrative Robot
Compact and precise robots ideal for welding and handling tasks. Designed for efficient automation in small to mid-scale setups.
Universal Series
Built for a wide range of manufacturing tasks, the Universal Series delivers high accuracy, flexible integration, and consistent productivity across diverse automation processes.
FAq
What is the Heavy-Duty Series industrial robot used for?
RL Robotics 6-axis articulated robot built for large-scale, high-force automation — handling heavy material transfer, large-part welding, and demanding assembly tasks that lighter robot series can’t manage.
Is the Heavy-Duty Series built for continuous, multi-shift operation?
Yes — it’s engineered as a production-critical asset for press lines, structural fabrication, and continuous multi-shift environments, not just occasional heavy lifting. The robot is built to run as a core part of your production line, not a supplementary tool brought in for specific tasks.
How is the Heavy-Duty Series different from the Universal Series?
Heavy-Duty handles significantly higher payloads (120–500kg vs. 12–120kg) with tighter repeatability (±0.06mm vs. ±0.07–0.08mm), making it the choice for heavy component handling, press lines, and large-part welding, while Universal Series covers general-purpose multi-tasking at lower payloads.
Can the Heavy-Duty Series be wall or ceiling mounted?
No — Heavy-Duty models are floor-mount only, unlike the Compact Series and Universal Series which support floor, wall, or ceiling installation. The higher payload and reach require the stability of a fixed floor mount
