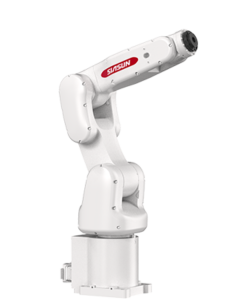

Compact Series Industrial Robot
Compact Series 6-axis Industrial Robot is a high-performance range of Articulated Robots built for modern, space-constrained manufacturing. Featuring a payload capacity of 4kg to 12kg and a reach spanning 580mm to 1465mm, these agile robots are purpose-built for applications requiring exceptional speed, micro-level precision, and a minimal footprint. With industry-leading repeatability of ±0.02 mm to ±0.03mm and an IP67 rating, the RL Compact Series delivers stable, continuous motion—making it the ideal solution for demanding, high-precision industrial tasks in tight work cells.
Technical Specifications
| Specification | Compact-580 | Compact-910 | Compact-1300 | Compact-1465 |
|---|---|---|---|---|
| Payload Capacity | 4 kg | 6 kg | 10 kg | 12 kg |
| Maximum Reach | 580 mm | 910 mm | 1300 mm | 1465 mm |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.03 mm | ±0.03 mm |
| Controlled Axes | 6 | 6 | 6 | 6 |
| Protection Rating | IP67 | IP67 | IP67 | IP67 |
| Mounting Options | Floor / Wall / Ceiling | Floor / Wall / Ceiling | Floor / Wall / Ceiling | Floor / Wall / Ceiling |
What Comes with Your Robot
Each RL Robotics Compact Series industrial robot is supplied as a complete automation-ready package, including:
Standard Package
● 6 Axis Robot Arm
● Robot Controller
● Teach Pendant
● Standard cables and accessories
Optional Add-Ons
Positioner / Turntable – Provided as per application requirement.
Integration solution
(Only for Welding)
RL Robotics recommends the BINGO Power Source for robots & cobots, ensuring stable arcs, high repeatability, and reliable automated welding.
RL Robotics Controller
Intelligent Robot Control System
RL Robotics offers for 6 Axis articulated robots with Advanced Controller delivers high-speed processing, precise motion control, and reliable communication for industrial automation. Its modular design ensures seamless integration with robots, PLCs, vision systems, and manufacturing equipment.
| Control | Up to 6-Axis Robot Control |
| Communication | EtherCAT, TCP/IP, DeviceNet |
| Design | Compact Modular Architecture |
| Storage | 4GB Memory |
| Protection | IP20–IP54 (Model Dependent) |
| Applications | Welding,Painting, Handling, Assembly & Inspection |

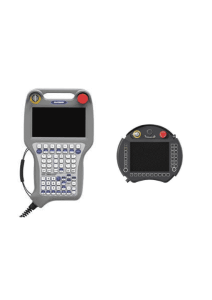

Compact Series Teaching Pendant
| Model | STBV2A | STBT2A-H |
|---|---|---|
| Size | 348.1mm × 206.7mm × 46.5mm | 288mm × 218mm × 86mm |
| Screen |
7-inch touchscreen, resolution 800×480, with touch pen and function keys. |
8-inch touchscreen, resolution 1024×768, function keys. |
| IP Class | IP65 | IP54 |
| Cable Length | Cable length options: 9m, 15m, or 25m available. | |
Related Industrial Robots
Universal Series
Fast and accurate robots built for consistent industrial performance. Perfect for welding and material handling applications.
Duco Collaborative Robot
Compact and precise robots ideal for welding and handling tasks. Designed for efficient automation in small to mid-scale setups.
Heavy Duty Series
High-payload robots with extended reach for heavy-duty applications. Built for large-scale and complex automation tasks.
FAq
What is the Compact Series industrial robot used for?
RL Robotics 6-axis articulated robot built for space-constrained manufacturing cells, handling welding, painting, material handling, assembly, and inspection tasks where floor space is limited.
How accurate is the Compact Series?
Repeatability is ±0.02mm on the smaller models (Compact-580, Compact-910) and ±0.03mm on the larger models (Compact-1300, Compact-1465) — precise enough for assembly and inspection-grade work.
Can the Compact Series be mounted on a wall or ceiling?
Yes. All four models of RL Robotics Articulated robots support floor, wall, or ceiling mounting, giving you layout flexibility that fixed floor-mount robots don’t offer.
What is the IP67 rating and why does it matter?
IP67 means the robot is dust-tight and can withstand temporary submersion, giving it strong resistance to the dust, coolant, and moisture common in Indian shop-floor environments — a meaningful durability edge over lower-rated competitors.
