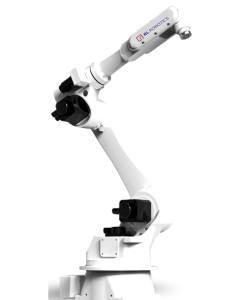

Universal Series Industrial Robot

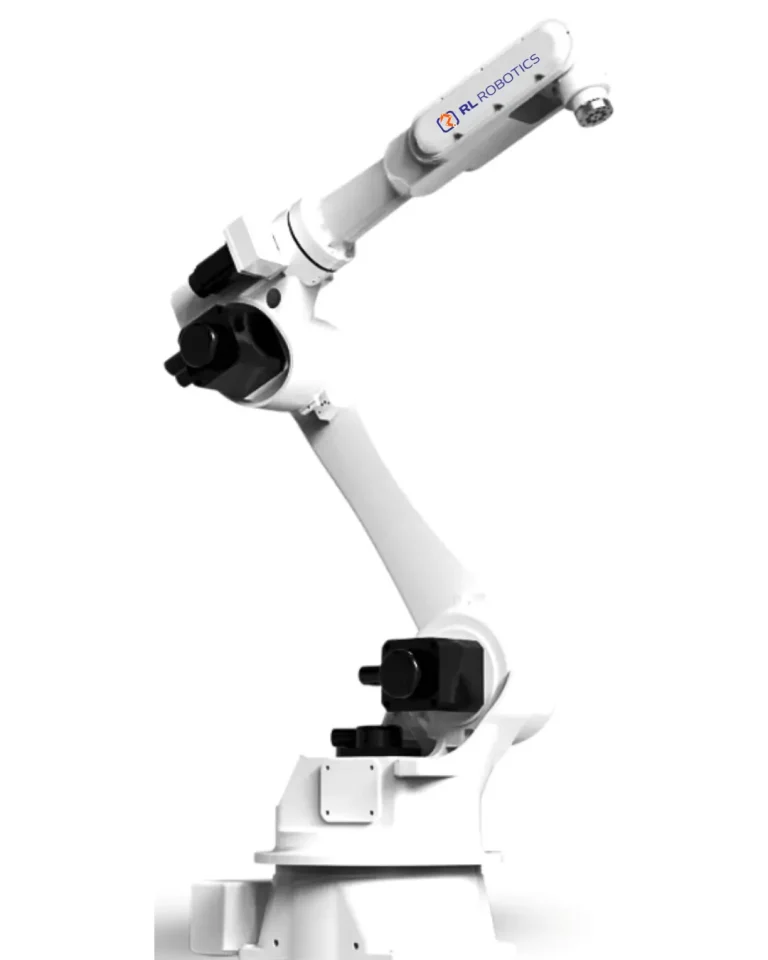

RL Robotics Universal Series is a versatile, high-performance range of 6-axis industrial robots engineered to serve as the all-in-one workhorse for modern manufacturing. Featuring a flexible payload capacity of 12kg to 120kg and an extensive reach spanning 2010mm to 3100mm, these robots solve complex multi-tasking demands across welding, painting, machine tending, and assembly. Designed with an advanced hollow-arm architecture, the series protects internal dress packages and cables from sparks and abrasion, delivering stable motion and high repeatability ±0.07mm to ±0.08mm) even in narrow, demanding work envelopes.
Technical Specifications
| Specification | Universal-2010 | Universal-1803 | Universal-2158 | Universal-3100 |
|---|---|---|---|---|
| Payload Capacity | 12 kg | 20 kg | 50 kg | 120 kg |
| Maximum Reach | 2010 mm | 1803 mm | 2158 mm | 3100 mm |
| Repeatability | ±0.07 mm | ±0.07 mm | ±0.08 mm | ±0.08 mm |
| Controlled Axes | 6 | 6 | 6 | 6 |
| Robot Structure | Hollow Arm Design | Hollow Arm Design | Hollow Arm Design | Hollow Arm Design |
| Protection Rating | IP65 | IP65 | IP65 | IP65 |
| Mounting Options | Floor / Wall / Ceiling | Floor / Wall / Ceiling | Floor / Wall / Ceiling | Floor / Wall / Ceiling |
What Comes with Your Robot
Each RL Robotics Universal series 6-axis industrial robot is supplied as a complete automation-ready package, including:
Standard Package
● Industrial Robot Arm
● Robot Controller
● Teach Pendant
● Standard cables and accessories
Optional Add-Ons
Positioner / Turntable – Provided as per application requirement.
Integration solution
(Only for Welding)
RL Robotics recommends the BINGO Power Source for robots & cobots, ensuring stable arcs, high repeatability, and reliable automated welding.

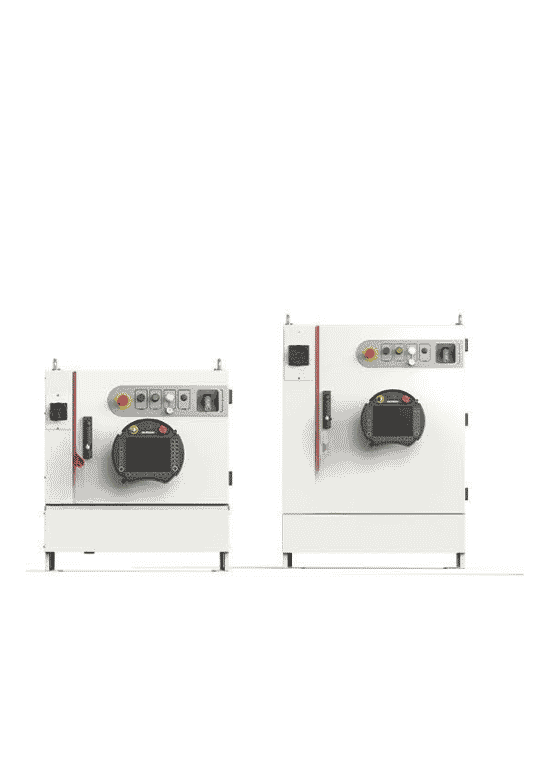

RL Robotics Controller
Intelligent Robot Control System
RL Robotics Advanced Controller delivers high-speed processing, precise motion control, and reliable communication for industrial automation. Its modular design ensures seamless integration with robots, PLCs, vision systems, and manufacturing equipment.
| Control | Up to 6-Axis Robot Control |
| Communication | EtherCAT, TCP/IP, DeviceNet |
| Design | Compact Modular Architecture |
| Storage | 4GB Memory |
| Protection | IP20–IP54 (Model Dependent) |
| Applications | Welding,Painting, Handling, Assembly & Inspection |

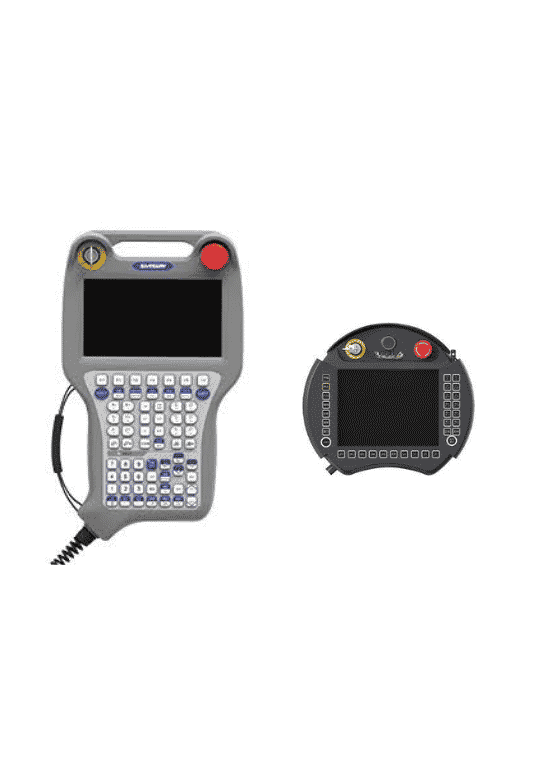

Teaching Pendant
| Model | STBV2A | STBT2A-H |
|---|---|---|
| Size | 348.1mm × 206.7mm × 46.5mm | 288mm × 218mm × 86mm |
| Screen |
7-inch touchscreen, resolution 800×480, with touch pen and function keys. |
8-inch touchscreen, resolution 1024×768, function keys. |
| IP Class | IP65 | IP54 |
| Cable Length | Cable length options: 9m, 15m, or 25m available. | |
Related Industrial Robots
Compact Series
Compact Series Industrial Robots deliver precise 6-axis automation with a space-saving design, making them ideal for welding, machine tending, material handling, and assembly in compact production environments.
Duco Collabrative Robot
Compact and precise robots ideal for welding and handling tasks. Designed for efficient automation in small to mid-scale setups.
Heavy Duty Series
High-payload robots with extended reach for heavy-duty applications. Built for large-scale and complex automation tasks.
FAq
What is the Universal Series industrial robot used for?
RL Robotics 6-axis articulated robot built as an all-in-one workhorse for manufacturing handling, welding, painting, machine tending, and assembly across a wide range of part sizes and production demands.
What is hollow-arm design and why does it matter?
The hollow-arm architecture routes internal cables and dress packages through the arm itself, shielding them from sparks and abrasion. This matters most in welding applications, where exposed cabling is a common failure point on lower-end robots.
How is the Universal Series different from the Compact Series?
Universal Series handles heavier payloads (12–120kg vs. 4–12kg) and longer reach (2010–3053mm vs. 580–1465mm), making it the choice for larger parts and extended work envelopes, while Compact Series is built for tight, space-constrained cells.
What is the IP rating of the Universal Series?
IP65-rated, giving strong protection against dust and low-pressure water jets — suited for standard industrial environments including welding and painting cells.
